Charcoal Quartz Countertop Residential Project Made in Thailand

Project Overview

This technical summary documents our Thailand production facility’s execution of custom-engineered, dark charcoal quartz vanity packages for an upscale commercial hospitality project. The architectural design required extra-long, wall-to-wall vanity configurations mounted directly over minimalist open-chassis steel and wood support shelving.

For an export factory, manufacturing dark, fine-grained engineered stone over extended linear spans presents unique challenges. It requires flawless surface gloss uniformity and absolute dimensional control. Our objective was to ensure a successful on-site “drop-in” installation that completely eliminated the need for hazardous, time-consuming field modifications by the local construction crews.

Project Details & Manufacturing Diagnostics

1. Material Integrity & Advanced Surface Gloss Control

The project specified a premium, fine-grained dark charcoal quartz at a 20mm thickness. Dark, solid-toned quartz is highly sensitive to factory fabrication environments; it easily highlights minor scratches, resin pooling, and machine-induced scuffs. Furthermore, any uneven pressure from automated polishing heads creates a cloudy “shading” effect that becomes highly obvious under targeted hotel bathroom downlighting.

To safeguard the surface quality, our factory implemented two strict operational changes for this production run:

Handling Protocols: We completely replaced all standard black rubber suction cups on our gantry lifters and CNC tables with non-marking white silicone vacuum pods. This effectively prevented “ghost ring” oil migration into the polished faces of the dark stone.

Polishing Calibration: We recalibrated our multi-head inline polishing track to a slowed, uniform feed rate with heightened water-cooling volumes. This achieved an exceptionally deep, mirror-like gloss across the entire batch, keeping the surface completely free of micro-abrasions.

2. Linear Tolerance Engineering for Enclosed Wall-to-Wall Outfitting

As documented by the rigorous tape-measure quality audits performed on our factory floor (as seen in the production layout records within image_f0e11f.jpg), our primary engineering constraint was the recessed wall setting. When a heavy stone deck must slide perfectly between two finished drywall alcoves, standard industry tolerances of +/-2mm are completely unacceptable. A slab that is slightly too long will rupture the drywall during placement, while a slab that is too short leaves an unacceptably wide gap.

To resolve this, we manufactured the main decks to a hyper-strict tolerance of +0/-1mm. We executed a deliberate engineering tradeoff: we instructed our CNC saws to cut the primary slabs exactly 2mm shorter than the nominal site dimensions. To manage the resulting 1mm clearance gap on either side, we supplied matching 20mm thick quartz side-splash panels. These side-splashes effectively masked the installation gaps, allowing the contractor’s team to drop the main slabs into place effortlessly without performing messy on-site wet grinding.

3. Mitered Apron Engineering and Pneumatic Clamping Jigs

To achieve the bold, modern look specified by the interior designer, each vanity top required a prominent 120mm front mitered apron and matching vertical end-returns. This gives the finished assembly the appearance of a massive, solid block of stone.

When bonding a long, narrow apron strip to a two-meter-long main deck, conventional manual C-clamps introduce uneven pressure points. This variation can cause the stone to warp slightly or allow the epoxy line to widen in the center. To overcome this, our facility engineered custom pneumatic long-span clamping rigs. These jigs distributed perfectly balanced, continuous pneumatic pressure along the entire 45-degree miter line during the adhesive curing cycle. This process resulted in a razor-thin, incredibly tight seam that is virtually invisible and highly structurally stable.

4. CNC Routing and Sub-Structure Coordination

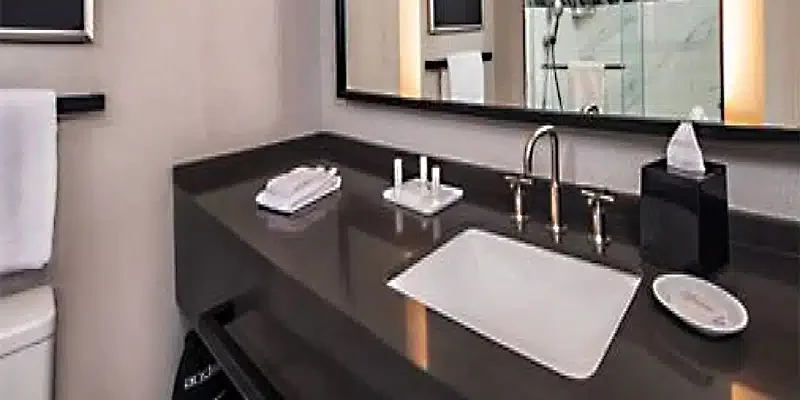

Every vanity deck was anchored to our 5-axis CNC routing tables to execute the rectangular undermount sink cutouts. The inner rims of these cutouts were given a perfectly polished, water-shedding eased edge profile. We also utilized automated water-cooled core bits to drill a single, centered faucet opening per unit, locking its position within a 0.5mm variance to guarantee perfect plumbing alignment.

Because these specific vanities sit on an open-frame chassis with the lower plumbing left entirely exposed to view, the rear cuts, undersides, and interior apron returns were completely calibrated at our factory. We smoothed and finished the back edges of the stone to clear the heavy-duty wall-mounting brackets seamlessly. This foresight ensured that the on-site plumbers could hook up the waste lines immediately without needing to notch or modify the stone structure on the job site.
